Baja Designs | 2021+ Ford Raptor Squadron Sport Behind Grille Light Kit | 448061

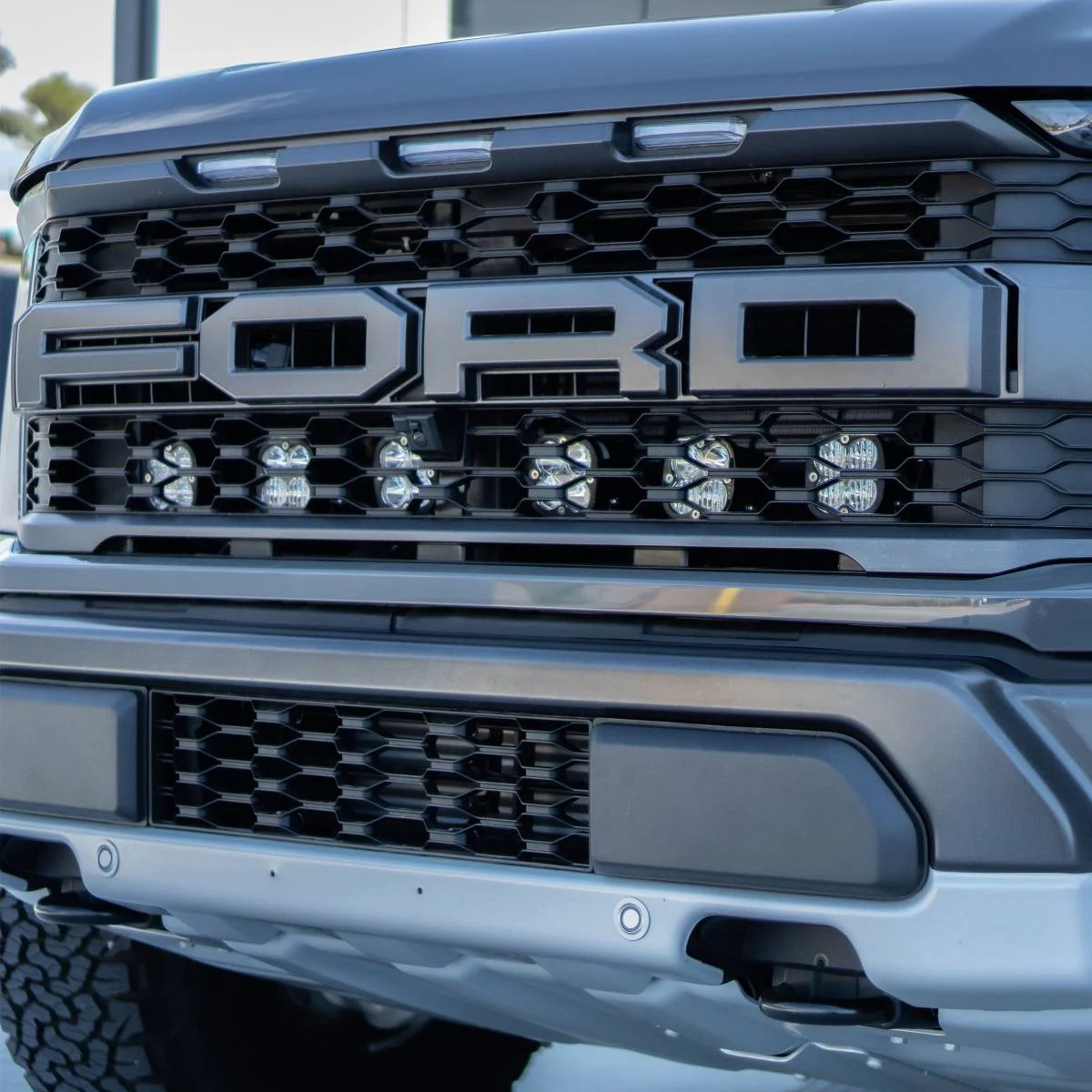

Baja Designs' 2021 Ford Raptor Behind the Grill kits were designed with both functionality and visual appeal in mind. This kit offers six Squadron Sports, mounting brackets, and hardware. To give these kits and easier wiring installation each kit includes an up-fitter harness that will allow you to tap your lights into the factory up-fitter switches.

Baja Designs Features:  Satisfactions Guarantee: 30 Day Money Back  Guarantee  Limited Lifetime Warranty: Complete Purchase Protection  uService®: Replaceable Lenses And Optics  ClearView®: All The Light, Right Where You Need It.  MoistureBlock™: Waterproof, Rain Proof, Submersible  CopperDrive: Only LED Driven At 100%  5000K Daylight: Less Driver Fatigue, Natural Color

Specifications (per light):  Lumens: 3,150 Utilizing 4LEDs  Wattage/Amps: 26W / 2A  Dimensions: 3.07" x 2.77" x 3.07"  Weight: 12 ounces  LED Life Expectancy: 49,930 Hours  Front Lens: Hard Coated Polycarbonate  Housing: Powder Coated Cast Aluminum  Bezel: Billet Machined Aluminum  Hardware & Bracket Material: Stainless Steel  Exceeds MIL-STD810G (Mil-Spec Testing)  Built-In Overvoltage Protection  IP69K (Waterproof, Submersible to 9ft)  IK10 Compliant (Mechanical Impact Testing)



Applications:

• 2021+ Ford Raptor



Included:

• x2 Squadron Sport in Wide Cornering
• x2 Squadron Sport in Driving Combo
• x2 Squadron Sport in Spot
• x1 Upfitter harness
• x2 Mounting Brackets
• All necessary hardware



Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
