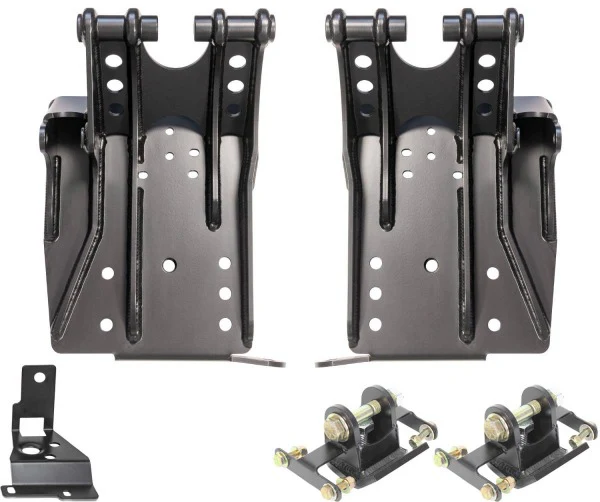

Carli Suspension | 2005-2016 Ford Super Duty Coilover Conversion Bracket Kit
SKU:Ā CS-FCOMKIT-0508
ā Ford Coilover, Upper and Lower Mounts
ā 1/4ā³ Cold Rolled Steel Construction
ā Powder Coated for Finish Durability
ā Bypass Shock Ready
ā Fitment: 2005-2016 F250/F350
NOTE: Shocks NOT Included.
The 05-16 Super Duty Platform has a riveted coil bucket from the factory. Punch these rivets, drill the frame holes to 1/2ā³ and bolt in a custom-spec Carli Coilover to allow for and amazing ride and infinite adjustability.
Each mount is constructed out of 1/4ā³ cold rolled steel for superior strength. These mounts bolt in place of the existing riveted coil bucket using 1/2ā³ Grade 8 fasteners. The coilover sits atop the axle in place of the coil-spring. The upper mount is lifted as high as possible to maximize travel length.
Bypass shock mounts are also incorporated into the brackets (positioned in the factory shock location) should go-fast desert shenanigans be in store.
Original: $1,040.00
-65%$1,040.00
$364.00
Description
SKU:Ā CS-FCOMKIT-0508
ā Ford Coilover, Upper and Lower Mounts
ā 1/4ā³ Cold Rolled Steel Construction
ā Powder Coated for Finish Durability
ā Bypass Shock Ready
ā Fitment: 2005-2016 F250/F350
NOTE: Shocks NOT Included.
The 05-16 Super Duty Platform has a riveted coil bucket from the factory. Punch these rivets, drill the frame holes to 1/2ā³ and bolt in a custom-spec Carli Coilover to allow for and amazing ride and infinite adjustability.
Each mount is constructed out of 1/4ā³ cold rolled steel for superior strength. These mounts bolt in place of the existing riveted coil bucket using 1/2ā³ Grade 8 fasteners. The coilover sits atop the axle in place of the coil-spring. The upper mount is lifted as high as possible to maximize travel length.
Bypass shock mounts are also incorporated into the brackets (positioned in the factory shock location) should go-fast desert shenanigans be in store.
