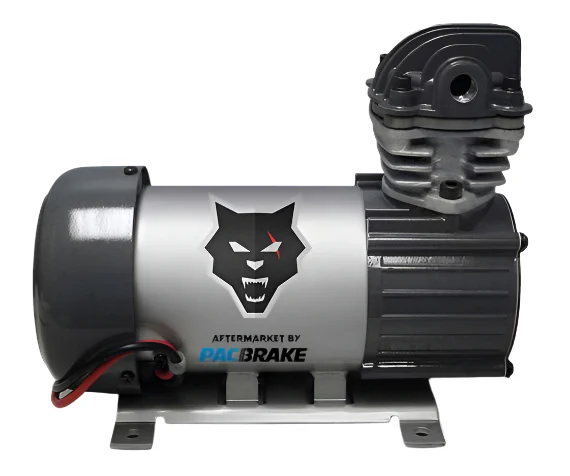

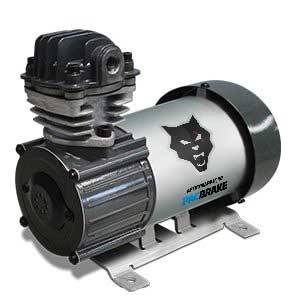

PacBrake | 24V Air Compressor W/ Vertical Pump Head HP625 Series

24V HP625 Series Air Compressor is a heavy duty compressor with vertical pump head configuration.

The HP625 series Pacbrake compressors requires the use of the unloader assembly (Kit Number HP10116-24) for use with an air tank.

Pacbrake's 625 Series heavy duty Pacbrake Air Compressors have a 100 percent duty cycle and are offered in two pump head configurations-Vertical and Horizontal.

Compressor features

• Copper wire wound permanent magnet motor
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve

Compressor Specifications

• 24V DC
• 100 percent duty cycle at 100 PSI
• 3/4 HP
• Vertical head configuration
• Size is 11.5 inch x 6 inch x 9.5 inch or 293 mm x 153 mm x 242 mm (LxWxH)
• Weight is 17.7 lbs.

Note-The HP625 series Pacbrake compressors i.e Part Number HP10625V-24V requires the use of the unloader assembly (Kit Number HP10116-24) for use with an air tank.

Details:

• Vertical Pump Head
• Finish Anodized
• Series HP625 Series
• Volts 24 Volt
