Synergy | 2005-2024 Ford Super Duty Gas 4x4 Leveling System

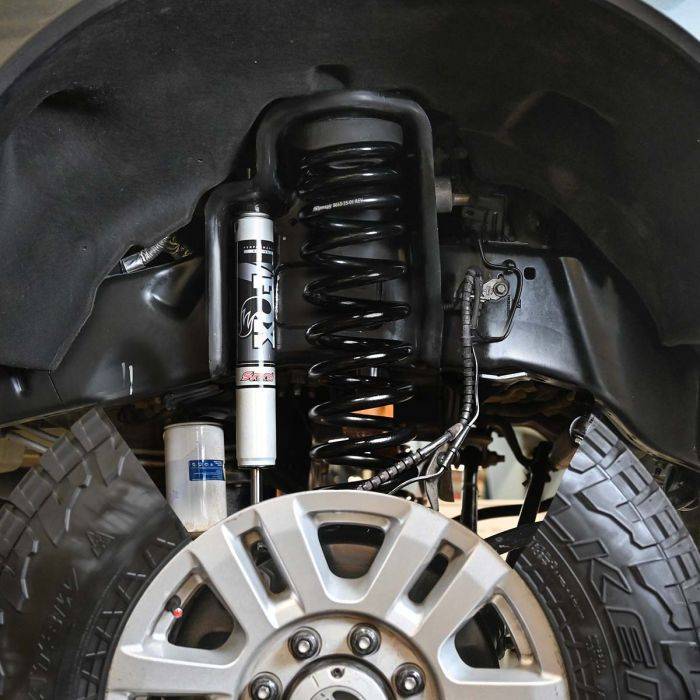

The Synergy Ford Super Duty F-250 / F-350 front leveling System lifts the front of the truck 2.5” and includes all the components to ensure your truck rides and handles better than stock. The springs are progressively wound and when matched with the Fox shocks provide a soft ride while increasing bottoming resistance and allows for 9 ¾“ of travel. The increased travel Fox shocks are protected from damage by the 1’ Synergy bump stop spaces. The factory brake lines are retained and allow for the increase in height by utilizing the Synergy brake line relocation brackets. By using these brackets factory ABS clips are preserved so there is no need to bleed the brakes after installation. Caster shims are provided to maintain the vehicles factory handling and steering response after leveling. The Synergy Ford leveling system allows up to 37” tire with correct backspacing.

Fitment:

• 2005+ Ford Super Duty F-250 / F-350 4x4 GAS

  Part #	Description
  SYN-8650-22	Synergy 2005+ Ford Super Duty F-250 / F-350 4x4 - Gas

Benefits:

• Raises the front suspension to level the truck
• Increases ride comfort and control
• Increased bottoming resistance
• Increased travel
• No loss in towing capacity
• Maintains stock driving characteristics
• Will allow installation of 35 inch or 37 inch tires
• Bolt On. No modifications required to install
• Affordable Quality, made in the USA

Features:

• Progressive wound dual rate coil springs are manufactured using the latest in CNC hot winding technology for optimized on and off road performance
• Coil springs are cycled to set height and can compress to solid without overstressing
• Coil springs feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Front wheel travel is increased 30 percent from 7 3/4 inches to 9 3/4 inches
• Laser cut and zinc coated brake relocations for a precise fit and long life
• CNC cut 6061-T6 Aluminum Bump stop spacers
• Caster shims are made from high strength 1045 steel and zinc coated for corrosion protection

Includes:

	SYN-8650-22 -  Synergy 2005+ Ford Super Duty F-250 / F-350 4x4 - Gas
	(1) SYN-8664-25 2.5" Leveling Springs, Pair (2) Fox Front IFP Smooth Body Shocks (2) Fox Rear IFP Smooth Body Shocks (1) SYN-8657-01 1" Front Bump Stop Spacers (1) SYN-8612-24 Caster Sleeve Kit (1) SYN-8673-01 Sway Bar End Link Spacer Kit (1) SYN-8682-01 Front Brake Line Relocation Brackets

Notes:

• Fits 35x12.50 with no trimming
• Minor fender trimming needed to fit 37x12.50 depending on wheel backspacing.
